from 4.460,00 € excl. VAT
Find your dealer Lipo Lomo Micro

Lipo Lomo Micro

Lipo Lomo Micro

What do you get when you shrink the Lipo Lomo but keep the motor power? The Lipo Lomo Micro!

If you are looking for a compact and practical towing device, the Lipo Lomo Micro is your optimal companion. With its quiet but powerful electric motor, it is not only handy and powerful, but also very maneuverable. This flexible towing aid offers at the same time a high tipping safety and guarantees great driving fun in everyday life as well as on trips.

Special feature

From wheelchair to tricycle

With the pre-tensioner, the two castors of the wheelchair are raised, which significantly improves the off-road mobility. Whether cobblestones, gravel and dirt paths, uneven or muddy trails, these nightmare-inducing conditions no longer become an obstacle!

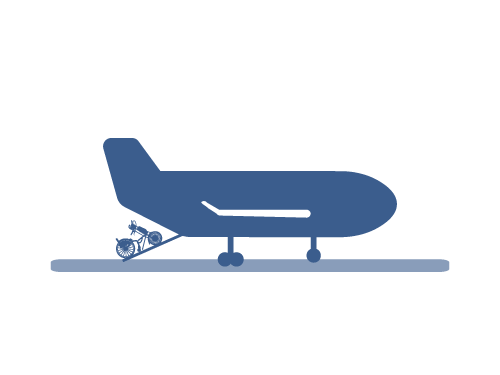

Airplane transportation

Equipped with up to two 8.3 Ah 300 Watt batteries, the power assist device can usually be transported on the aircraft as a disabled vehicle without any problems. It is possible that transport of the battery is nevertheless not permitted, please check with your airline or travel company before the planned trip. Obtain a confirmation in writing.

Product images

Basic equipment

The specifications depend on the model and equipment and may therefore differ. You will receive binding information when ordering or in the offer.

You will find further equipment options under the menu items Tetra equipment (if available), Special equipment and Individualization.

Data sheet

Drive type Wheel hub motor
Engine 350 watt motor power
Speed up to 15 km/h From a speed of more than 6 km/h, an operating license and appropriate insurance is required in Germany to participate in public road traffic.
Battery 36 V, 8 .3 Ah (300 Wh)
Charger 36V 1.35 A
Wheel size 12 inch
Break Disc brake Stricker handbikes and power assist devices are always equipped with double mechanical brakes such as coaster brake, V-brake and disc brake. If there is only one type of brake, it is double equipped, e.g. with two brake calipers on one disc brake or one disc brake and one V-brake. In addition, at least one of the existing brakes can be locked in order to park the handbike or power assist device. This ensures full safety.
Transport weight From 14 kg
Total weight From 19 kg
Max. user weight Standard load up to 120 kg user load. More than 120 kg is possible on request.

Equipment

Drive

Illustration can deviate.

Wheel hub motor

The wheel hub motor is a form of drive that is built directly into the wheel. Compared to a mid-mounted motor, there are fewer mechanical components that require maintenance and wear.

Illustration can deviate.

Maximum speed 15 km/h

The maximum speed is 15 km/h. From a speed of more than 6 km/h, an operating license and appropriate insurance is required in Germany to participate in public road traffic.

Other speed options are available.

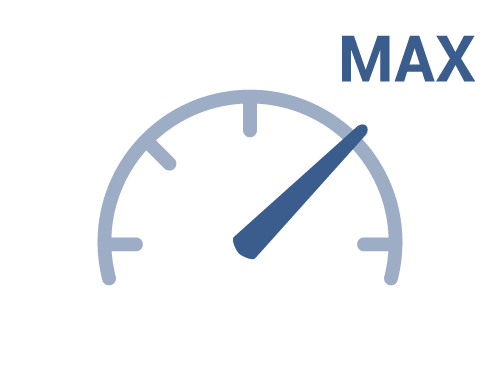

Alternative maximum speeds

Further maximum speeds can be permanently programmed by us at no extra charge. There are the possibilities of tp to 6 km/h, 15 km/h or 25 km/h. Please note that an adjustment of the maximum speed is only possible by us and in our factory. From a speed of more than 6 km/h, an operating license and appropriate insurance is required in Germany to participate in public road traffic. In Germany, the power assist device may only be ridden on private, inaccessible terrain from a speed of 15 km/h.

Other speed options are available.

Illustration can deviate.

Range up to 25 km

A range of up to 25 km on the flat is possible. The actual range depends on many individual factors such as model, equipment, road and surface, weather and more.

The range can be extended with additional batteries. Depending on the model, additional batteries can be mounted directly on the bike or carried loosely.

Reverse gear

The handbike or power assist device can be manoeuvred more dynamically using reverse gear.

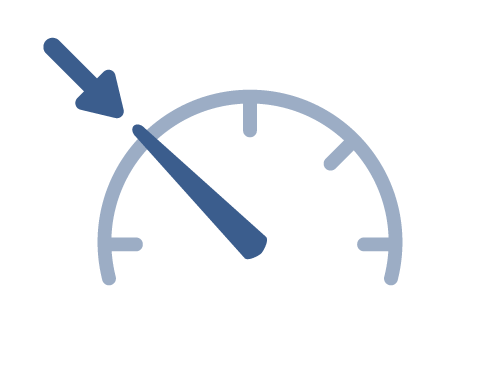

Cruise control

Cruise control allows you to drive quite comfortably, because you have the option of maintaining the current speed at the touch of a button. This makes sense especially when your strength decreases when holding a position permanently, such as when turning the rotary throttle. Therefore, this option is particularly suitable for tetraplegia or multiple sclerosis.

Illustration can deviate.

Rotary throttle

Acceleration is via the twist throttle on the handle.

Illustration can deviate.

Disc brakes

The braking power of the disc brakes is significantly stronger due to the higher surface pressure compared to the V-brake.

Electornic

Illustration can deviate.

System voltage 36 volt

The handbike or power assist device is supplied with 36 volt system voltage.

Other speed options are available.

Illustration can deviate.

Regular charger

This charger has a capacity of 1.35 Ah. Alternatively, we offer a fast charger as an additional option.

Illustration can deviate.

Bike computer and info display

The bike computer displays various information about the ride and the info display can be used to determine the battery capacity..

Illustration can deviate.

Front light

A LED lamp at the front provides illumination of the roadway. It is supplied by the system voltage and therefore does not need to be loaded separately. It is switched on via a control on the handlebar or on the control housing.

Illustration can deviate.

Taillight

The rear light is mounted on the back of the wheelchair. The lighting is operated by a button cell and switched on and off by a switch on the rear light.

Frame and coupling

Illustration can deviate.

Stricker clamping system

With our specially developed Stricker clamp system, our handbikes and power assist devices are quick and easy to attach to any wheelchair - and usually without adapters or modifications to the wheelchair. The wheelchair or owner change can thus take place easily and within a very short time.

The diverse adjustment possibilities of the frame in conjunction with the clamp allow attachment to countless frame shapes, profiles and angles.

Illustration can deviate.

Stricker frame

The frame on the Stricker handbikes and power assist devices, which is made of high-grade bicycle steel with chrome-molybdenum alloy, can be adapted to all needs thanks to the wide range of adjustment options. The frame also allows adaptation with the Stricker clamping system to almost all wheelchairs even without adapters, conversions or stems.

Impeller

Illustration can deviate.

12 inch wheel

The 12 inch wheel is compact, but can compensate for the disadvantages of the small size by a good torque ratio.

Colors

Illustration can deviate.

Black

A slightly standout black with some sheen.

Illustration can deviate.

Matte black

A convincing matt black is always timeless and suitable for any occasion. The matt black blends in with any colour on the wheelchair.

Illustration can deviate.

Metallic silver

The metallic silver shade has a special, robust shine. The subtle color submits to any environment and thus stands out little.

Tetra equipment

People with tetraplegia have particularly high requirements. Since many motor skills are often severely limited or no longer function, classic mechanical inputs such as turning the twist grip or pulling the brake cable must be rethought and revised. That is why we offer tetra equipment for most of our handbikes and traction devices. In this equipment form, our products meet the high requirements of tetraplegia without compressing safety aspects.

Equipment

Illustration can deviate.

Braking with the tetra equipment

The brake of the Tetra equipment is not operated by gripping, but by hitting or placing the forearm or fist. Instead of the classic Bowden cable, a hydraulic disc brake is installed that achieves a high braking effect with little effort and remains easy to dose.

Illustration can deviate.

Hydraulic brake cable

The hydraulic brake cable is used instead of the classic Bowden cable. It allows a much stronger power transmission to the caliper but can not be maintained without special tools.

Illustration can deviate.

Tetra star nut

The star nut makes it much easier to tighten the clamp.

Illustration can deviate.

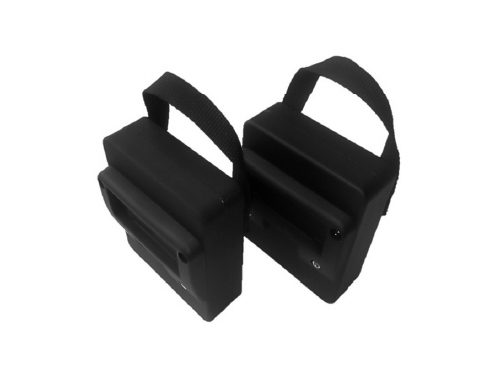

Two 5 kilo weights

The two 5 kilo weights are mounted in parallel. They help to gain traction and prevent the wheel from slipping.

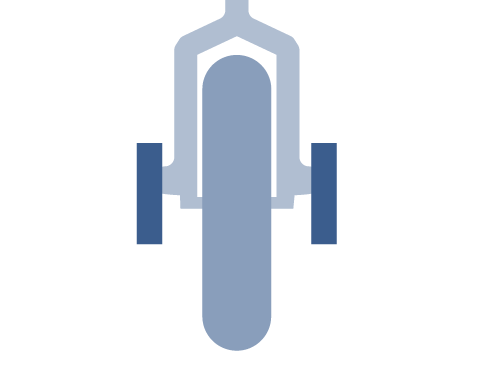

Weights on the fork

The weights are mounted Our weights are attached using the convenient and ever-expandable KLICKfix system. This means that the weights can be attached and removed in a few simple steps. The handling of your stem can thus be adjusted to the respective situation entirely without tools. in pairs on the fork parallel to the wheel. One weight is mounted on each side. This way of mounting the weights ensures maximum traction of the wheel. The weights can be mounted on the fork from a wheel size of at least 12 inches.

Special equipment

Stricker handbikes and power assist devices are adaptable to a wide variety of needs through our large range of equipment options and accessories. On this page you will get a small overview of common equipment options of this model range.

Further equipment options and additional accessories matching the model series can be found in the respective offer form.

Common options

TÜV acceptance

In Germany, traction devices with speeds up to 15 km/h are permitted in road traffic. For speeds above 6km/h, however, a TÜV test is required. At your request, we will gladly take care of the operating license and registration for Germany according to StVO.

Alternative maximum speeds

Further maximum speeds can be permanently programmed by us at no extra charge. There are the possibilities of tp to 6 km/h, 15 km/h or 25 km/h. Please note that an adjustment of the maximum speed is only possible by us and in our factory. From a speed of more than 6 km/h, an operating license and appropriate insurance is required in Germany to participate in public road traffic. In Germany, the power assist device may only be ridden on private, inaccessible terrain from a speed of 15 km/h.

Other speed options are available.

Double battery in parallel mounting

Two batteries can be mounted in parallel on the handbike or power assist device and used individually. A switching option for the power supply from the batteries is available.

Weights on the fork

The weights are mounted Our weights are attached using the convenient and ever-expandable KLICKfix system. This means that the weights can be attached and removed in a few simple steps. The handling of your stem can thus be adjusted to the respective situation entirely without tools. in pairs on the fork parallel to the wheel. One weight is mounted on each side. This way of mounting the weights ensures maximum traction of the wheel. The weights can be mounted on the fork from a wheel size of at least 12 inches.

Illustration can deviate.

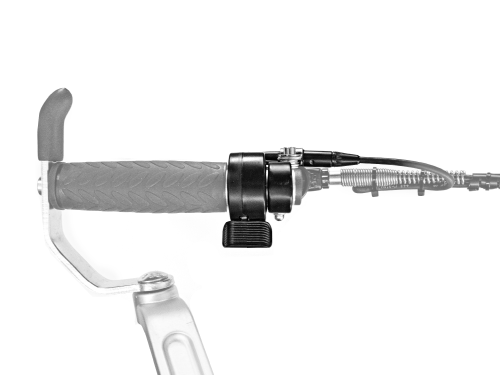

Thumb throttle

The thumb gas is actuated by pressure via the thumb on a lever. Depending on the model and equipment, it is installed instead of or in parallel with the rotary throttle.

Individualization

Stricker handbikes and traction devices can be customized. In addition to obvious customization options such as the seat width and the resulting frame size, there are also other ways to personalize the companion. On this page you will get an impression about the individualization possibilities of the product.

Available colors and coatings can be found on the colors and coatings page. All RAL special colours are available at an extra charge.

Colors

Illustration can deviate.

Frame color

On the frame, all the tubes can be colored in any color.

Coatings

Illustration can deviate.

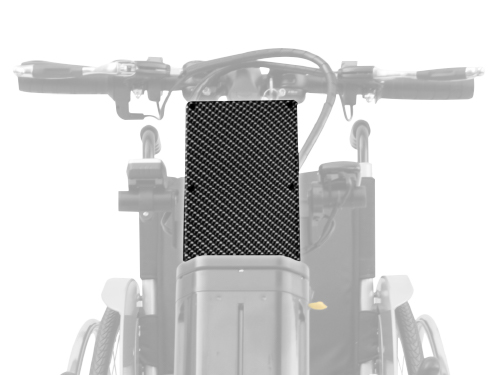

Coating on the control unit housing

The control unit housing can be coated.

Illustration can deviate.

Coating on the mudguard

The mudguard can be coated.

Illustration can deviate.

Coating on the automatic latch

The cap of the automatic latch can be coated.

Videos

LipoLomo Micro Tetra Buggy with reverse gear

Installation

[EN] Unpacking Video Stricker Handbikes: Undo transport settings

[EN] Installation Video Stricker Handbikes: Mount handbikes & power assist devices to a wheelchair

Documents

Are you looking for the right documents? We have collected a suitable selection of documents and information under the following links.

General Downloads under downloads.

Unpacking and installation guide under Help & Media.

Certificates under About us.

If you need further documents, we will be happy to help you personally. You can reach us via the contact form or by phone during our opening hours.

Documents for dealers

For dealers and distributors, our images are also available in full size and high resolution for all purposes. Whether on the web or as a print template. Contact us directly to get access to records, pictures, documents and more. We look forward to receiving your request.
