from 3.150,00 € excl. VAT
Find your dealer Ultra

Ultra

Ultra

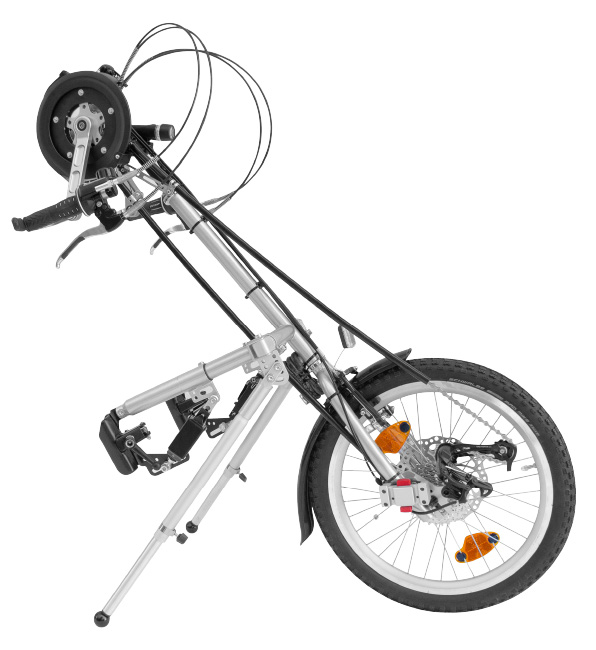

The Stricker handbike model "Ultra" makes leisurely tours, joint excursions with friends and family or sporting activities possible with ease.

A large number of gears in combination with a chain drive and a quick release help you to increase your sporting performance and, what's more, with a lot of fun.

Special feature

From wheelchair to tricycle

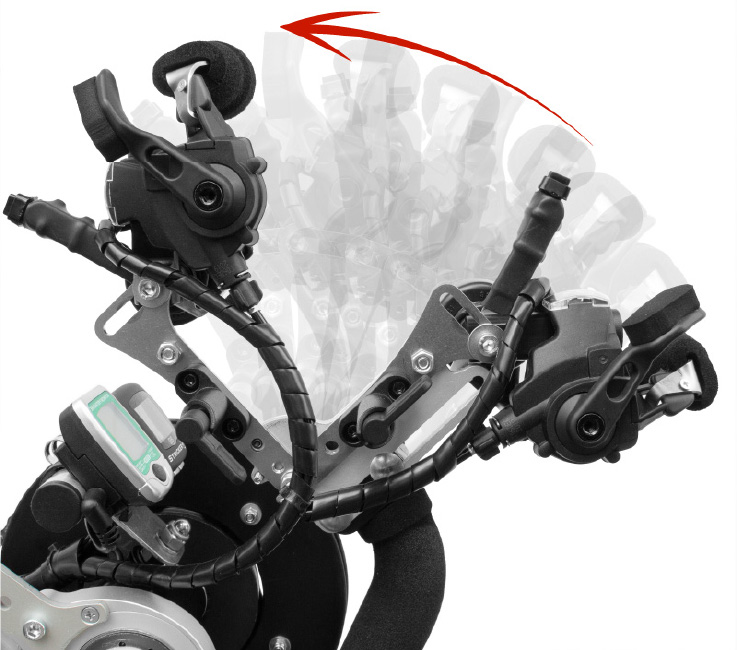

With the pre-tensioner, the two castors of the wheelchair are raised, which significantly improves the off-road mobility. Whether cobblestones, gravel and dirt paths, uneven or muddy trails, these nightmare-inducing conditions no longer become an obstacle!

Handbike as sports and leisure equipment

Handbikes have a significant benefit for their riders. Due to the various movements that occur while riding, the muscles can be built up and physical coordination trained.

Product images

Basic equipment

The specifications depend on the model and equipment and may therefore differ. You will receive binding information when ordering or in the offer.

You will find further equipment options under the menu items Tetra equipment (if available), Special equipment and Individualization.

Data sheet

Drive type Hand crank with Chain drive
Gears 24 in total, 8-speed derailleur with 14/28/38 Chainring
Wheel size 20 inch
Break Disc brake and V-break Stricker handbikes and power assist devices are always equipped with double mechanical brakes such as coaster brake, V-brake and disc brake. If there is only one type of brake, it is double equipped, e.g. with two brake calipers on one disc brake or one disc brake and one V-brake. In addition, at least one of the existing brakes can be locked in order to park the handbike or power assist device. This ensures full safety.
Total weight From 12 .5 kg
Max. user weight Standard load up to 120 kg user load. More than 120 kg is possible on request.

Equipment

Drive

Illustration can deviate.

Hand crank

The ergonomically mounted crank handle provides the drive.The handle lies comfortably in the hand, so that a longer distance can be covered without cramps in the palm of the hand.

Illustration can deviate.

Chain drive

The chain drive is the most common drive method for pedelecs. It consists of at least one chainring on the crank and a rear derailleur on the wheel, which are connected via the chain.

Illustration can deviate.

SRAM DualDrive

The hybrid gear system, which consists of chain and hub gears, enables a high number of gears. It is very compact and offers a dynamic gear configuration.

Illustration can deviate.

Ergonomic handles stemless with twist shifter

The comfortable ergo grips are cleverly mounted so that the centre of gravity is central to the axis of the hand crank. The gearshift device is a twist grip gearshift and is located on the handle.

Illustration can deviate.

Disc brakes

The braking power of the disc brakes is significantly stronger due to the higher surface pressure compared to the V-brake.

Illustration can deviate.

A

V-break

The V-brake is a simple and straightforward brake that is very accessible.

Electornic

Illustration can deviate.

Bike computer

The bike computer displays various information on a black and white display. The following information is displayed on it: current, maximum and average speed, riding distance, riding time and total kilometers.

Illustration can deviate.

Front light

An LED lamp at the front provides illumination of the roadway. It is supplied with power via commercially available batteries.

Illustration can deviate.

Taillight

The rear light is mounted on the back of the wheelchair. The lighting is operated by a button cell and switched on and off by a switch on the rear light.

Frame and coupling

Illustration can deviate.

Stricker clamping system

With our specially developed Stricker clamp system, our handbikes and power assist devices are quick and easy to attach to any wheelchair - and usually without adapters or modifications to the wheelchair. The wheelchair or owner change can thus take place easily and within a very short time.

The diverse adjustment possibilities of the frame in conjunction with the clamp allow attachment to countless frame shapes, profiles and angles.

Illustration can deviate.

Stricker frame

The frame on the Stricker handbikes and power assist devices, which is made of high-grade bicycle steel with chrome-molybdenum alloy, can be adapted to all needs thanks to the wide range of adjustment options. The frame also allows adaptation with the Stricker clamping system to almost all wheelchairs even without adapters, conversions or stems.

Impeller

Illustration can deviate.

20 inch wheel

The 20 inch wheel will overcome most obstacles without problems.

Colors

Illustration can deviate.

Black

A slightly standout black with some sheen.

Illustration can deviate.

Matte black

A convincing matt black is always timeless and suitable for any occasion. The matt black blends in with any colour on the wheelchair.

Illustration can deviate.

Metallic silver

The metallic silver shade has a special, robust shine. The subtle color submits to any environment and thus stands out little.

Illustration can deviate.

Blue

Blue looks restrained, cool and businesslike.

Illustration can deviate.

Red

Red is a passionate color, which always puts itself in the center.

Special equipment

Stricker handbikes and power assist devices are adaptable to a wide variety of needs through our large range of equipment options and accessories. On this page you will get a small overview of common equipment options of this model range.

Further equipment options and additional accessories matching the model series can be found in the respective offer form.

Common options

Planetary gear

The planetary gearbox doubles the available gears and is used for reduction. This is especially useful on hills, on steep slopes, or when there is less power in the arms. It is used in both chain and toothed belt drives.

Weights on the fork

The weights are mounted Our weights are attached using the convenient and ever-expandable KLICKfix system. This means that the weights can be attached and removed in a few simple steps. The handling of your stem can thus be adjusted to the respective situation entirely without tools. in pairs on the fork parallel to the wheel. One weight is mounted on each side. This way of mounting the weights ensures maximum traction of the wheel. The weights can be mounted on the fork from a wheel size of at least 12 inches.

Individualization

Stricker handbikes and traction devices can be customized. In addition to obvious customization options such as the seat width and the resulting frame size, there are also other ways to personalize the companion. On this page you will get an impression about the individualization possibilities of the product.

Available colors and coatings can be found on the colors and coatings page. All RAL special colours are available at an extra charge.

Colors

Illustration can deviate.

Frame color

On the frame, all the tubes can be colored in any color.

Coatings

Illustration can deviate.

Coating on the mudguard

The mudguard can be coated.

Illustration can deviate.

Coating on the automatic latch

The cap of the automatic latch can be coated.

Illustration can deviate.

Coating on the crank

The cranks can be fully coated.

Illustration can deviate.

Coating on the ergonomic handle

The ergobars of the hand crank can be completely coated.

Illustration can deviate.

Coating on the chain guard

The chain guard can be coated.

Documents

Are you looking for the right documents? We have collected a suitable selection of documents and information under the following links.

General Downloads under downloads.

Unpacking and installation guide under Help & Media.

Certificates and declarations of conformity under About us.

If you need further documents, we will be happy to help you personally. You can reach us via the contact form or by phone during our opening hours.

Documents for dealers

For dealers and distributors, our images are also available in full size and high resolution for all purposes. Whether on the web or as a print template. Contact us directly to get access to records, pictures, documents and more. We look forward to receiving your request.
